LATHE:

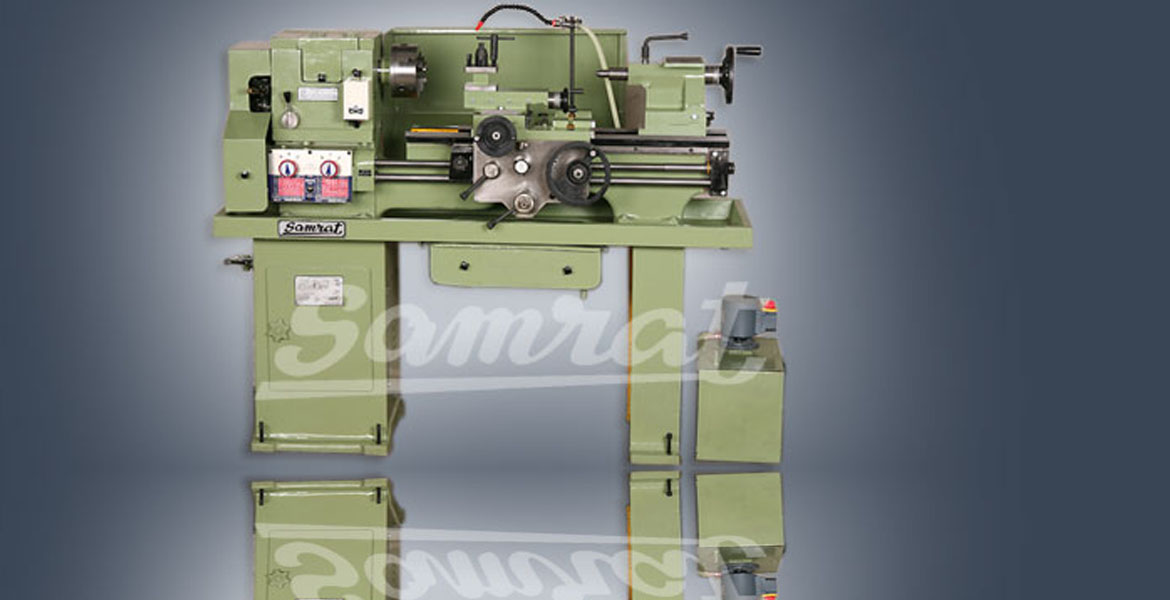

SAMRAT:- LIGHT DUTY


this instrument is meant for small scale object shaping or deforming tasks like those performed at workshops, tool rooms etc. It is a user friendly and easy to install device which can cast most accurate shapes while giving the user total control and ease of operation.

Light Duty Lathe Machine Features

Our light duty equipments designed in standard model and super model.

It is easy to accommodate this equipment in moderate workshops and stays a very good investment for small scale metal industries.

Suitable for applying in variety of industrial machining processes.

Perfect workshop tool for engineering industry.

Lots of metal cutting works can be tried out using this equipment.

It serves the purpose of transforming metal work materials into different shapes over pre-determined dimensions.

It is easy to operate and eradicates many complexities which are present in manual metal shaping.

Maintenance is absolutely hassling free as all the machine components are made of corrosion resistant and higher grade metals.

Special Features


Bed

  • bed is graded alloy casting, all parts are manufactured in our foundry. High tensile strength cast 20 to 25 GRADE IRON.
  • Rigid construction of bed for taking maximum loads.bed type 2v &2 Flat.
  • Perfect gap bed machine insuring the real works.
  • Hardened&Ground bed ways

General

  • Graduations dial for tail stock &apron wheel movement.
  • Metric system micro collar for all screw and nut.
  • Tailstock sleeve is tang shank type of Heavy Drilling.
  • Easy inter changeable parts.

Head Stock

  • Head stock body is of latest specially design.
  • Induction hardened and ground spindle of special alloy steel.All cen¬trifugal running parts are well balanced.
  • Back Gears Teeth are Helix Angle

Apron

  • Apron are totally enclosed oil bath system.
  • Lever type arrangement for automatic feeds.
  • T-slot on carriage for mounting special features.

Gear Box

  • Gear box arrangement for real time savings equipment.
  • Quick change gear box provides changes of feeds& threads.
  • •Separate lead screw &feed shaft for threading pitch accuracy
Height of Center 175mm.
Swing Over Bed 350mm
Swing Over Slide 190mm
Swing in Gap 550mm
Width of Bed 240mm
Spindle bore 40mm
Spindle Nose 6 T.P.I.
Spindle Speed No.8 45 To 900 RPM.
Cross Slide Travel 200mm
Top Slide Travel 85mm
Tail Stock Sleeve MT-3
Tail Stock Sleeve Dia/Travel ∅40mm./130mm.
Lead Screw ∅1 inch-4 T.P.I.
Metric Threads No.42 0.4 To7mm.
Threads per inch No.42 42 To 4T.P.I.
Feeds Range No.40L*C 0.032*0.008
Floor Space W*L 750*1800mm
Power Required 1.1Kw-1.5HP 1440 RPM
Net weight KG 500mm.(4'-6")
Bed Lenght (feet)
Addimt Between Center		 700mm.(4'-6")
1000mm.(5'-6")
